100 GPM Variable Volume Control Pump – Tri-Rotor Model 120AV

  • Tri-Rotor Variable Volume Control Head Pump Model 120AV

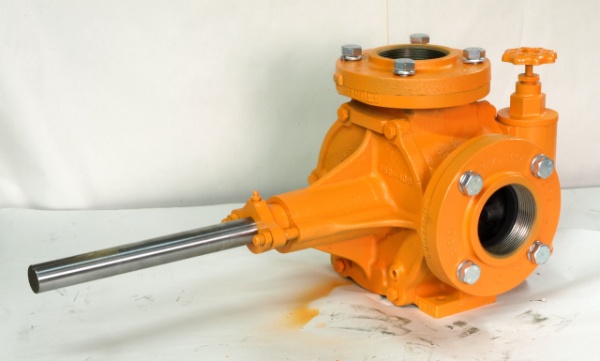

Click image to enlarge
Tri-Rotor Pump model 120AV, which shares common components with model 80BV and model 100CV, is in the second to largest family of Tri-Rotor Variable Volume Control Head pumps that provide variable flow rates.  This pump, with its unique design, allows the end user to adjust the flow rate of the pump from 0% to 100% through either the Manual Flow Control (MFC) or the more precise metering Vernier Flow Control (VFC) without changing motor speed.  The pump serves a wide range of industrial markets and applications.  Examples of the 120AV model’s diverse applications include pumping silicone sealant, diallyl phthalate, NLGI No. 2 grease, ink paste, and plastic.

The pump is designed with top suction and side discharge flanged ports and is available in both clockwise (CW) and counterclockwise (CCW) rotations for pump installation flexibility.  Materials of construction for the 120AV model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations.  Two drain plugs, located on the shaft housing, are provided with every pump.

Specifications of the Tri-Rotor Variable Volume Control Head Pump Model 120AV:

  • Flow rate:  19 to 102 GPM
  • Viscosity range:  410 to 650,000 cPs (2,000 to 3,000,000 SSU)
  • Inlet and Discharge Port size:  4” Flanged Top Suction and 3” Flanged Side Discharge Ports
  • Operating temperature range:  -40 °F to 650 °F
  • Maximum operating pressure:  100 PSI
  • Pump displacement per revolution:  0.148 gal/rev
  • Pump speed range:  150 to 610 RPM
  • Solids passage available:  0.037 in.
Do you know your system parameters and would like us to quote the best pump model?  Please fill out the Pump Systems & Analysis Sheet.

Configure Your 120AV Variable Volume Control Head Pump

Part Number:
120AV
Quantity:
We Also Recommend

As with all Tri-Rotor pump models, the 120AV is available with a Steam Jacketed option for fluids requiring to be heated or cooled in order to be pumped.


Other Options for the Variable Volume Control Head Pump Model 120AV:

  • Other Materials of Construction options:
    • Shaft:  Steel (std.), Stainless Steel, or Hardened Stainless Steel
    • Piston:  Iron (std.), Bronze, or Steel
    • Body and Variable Control Head Gasket options:
      • Standard  {to 250 °F (121 °C)}
      • Heat Resistant  {to 650 °F (345 °C)}
  • Shaft length:  “M” (15-1/4”) (std.), “T” (12-3/4”), “MO” (15-1/4”), or “BD” (15-1/4”)
  • Shaft seal and lubrication:
    • Packing options (grease fitting provided):
      • Teflon Impregnated Packing (std.)  {to 550 °F (288 °C)}
      • FDA Food Grade (PTFE) Packing  {to 500 °F (260 °C)}
      • Heat Packing  {to 650 °F (345 °C)}
      • Zero-Leak #3 (Beaded) Packing  {-40 °F to 500 °F (-40 °C to 260 °C)}
      • Zero-Leak #30 (Non-Beaded) Packing  {-40 °F to 500 °F (-40 °C to 260 °C)}
    • Mechanical seal options (oil cup provided):
      • Type 1 Mechanical Seal – Viton  {-40 °F to 300 °F (-40 °C to 150 °C)}
      • Type 1 Mechanical Seal – Buna  {10 °F to 180 °F (-10 °C to 80 °C)}
  • Variable Control Head Spring options:
    • Standard  {to 50 PSI}
    • Heavy Duty  {to 100 PSI}
  • Shuttle design:  Block (std.) or Formed
  • Relieved Rotor Group (for higher viscosities: >10,000 SSU/2,150 cPs)
  • Sanitary Preparation of pump internal components for food applications
  • Grease feeder available for shaft lubrication on pumps with packing
  • Exterior Protection:  Orange Paint (std.), Black Paint, White Lacquer, or 316SS Epoxy Coating
The bare weight of the pump is approximately 150 lbs.  The estimated shipping weight is 183 lbs.

Besides offering just a bare pump only for the Model 120AV, Tri-Rotor offers a complete mounted pump system, including motor drive assembly and mounting.  Replacement parts for all Series 120 pumps can be found here.
