80BX

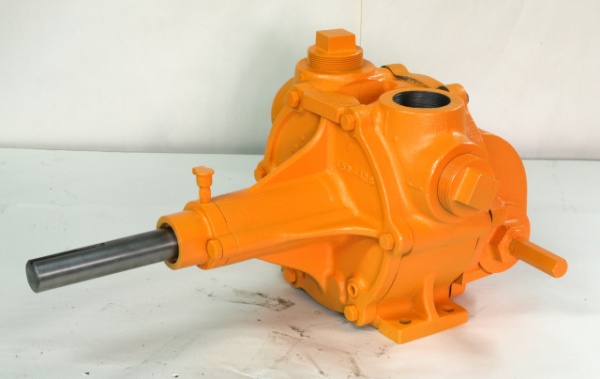

Tri-Rotor Pump model 80BX, which shares common components with model 100CX and model 120AX, is in the second to largest family of Tri-Rotor bypass head pumps that incorporate an internal relief valve and provide constant flow rates.  The relief valve bypasses flow directly from the discharge to the suction port when the set discharge pressure is achieved.  Discharge may be restricted or blocked entirely without shock or chatter.  The pump serves a wide range of industrial markets and applications.  Examples of the 80BX model’s diverse applications include pumping rayon acetate, butadiene, bunker C fuel oil, invert sugar, castor oil, and hydrocarbon compound.

The pump, available in both clockwise (CW) and counterclockwise (CCW) rotations, is designed with two threaded suction ports (side and top) and two threaded discharge ports (side and top) for the ultimate in installation flexibility.  Standard configuration is side suction and top discharge.  The other two ports are plugged with easily-moved pipe plugs.  One of these unique pumps could even be installed to deliver two different compatible fluids to two different locations.   Materials of construction for the 80BX model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations.  Two drain plugs, located on the shaft housing, are provided with every pump.

Specifications of Tri-Rotor Pump Model 80BX:

• Flow rate:  15 to 88 GPM
• Viscosity range:  4 to 21,625 cPs (40 to 100,000 SSU)
• Inlet and Discharge Port size:  2” NPT Ports
• Operating temperature range:  -40 °F to 650 °F
• Maximum operating pressure:  100 PSI
• Pump displacement per revolution:  0.148 gal/rev
• Pump speed range:  100 to 600 RPM
• Solids passage available:  0.037 in.
